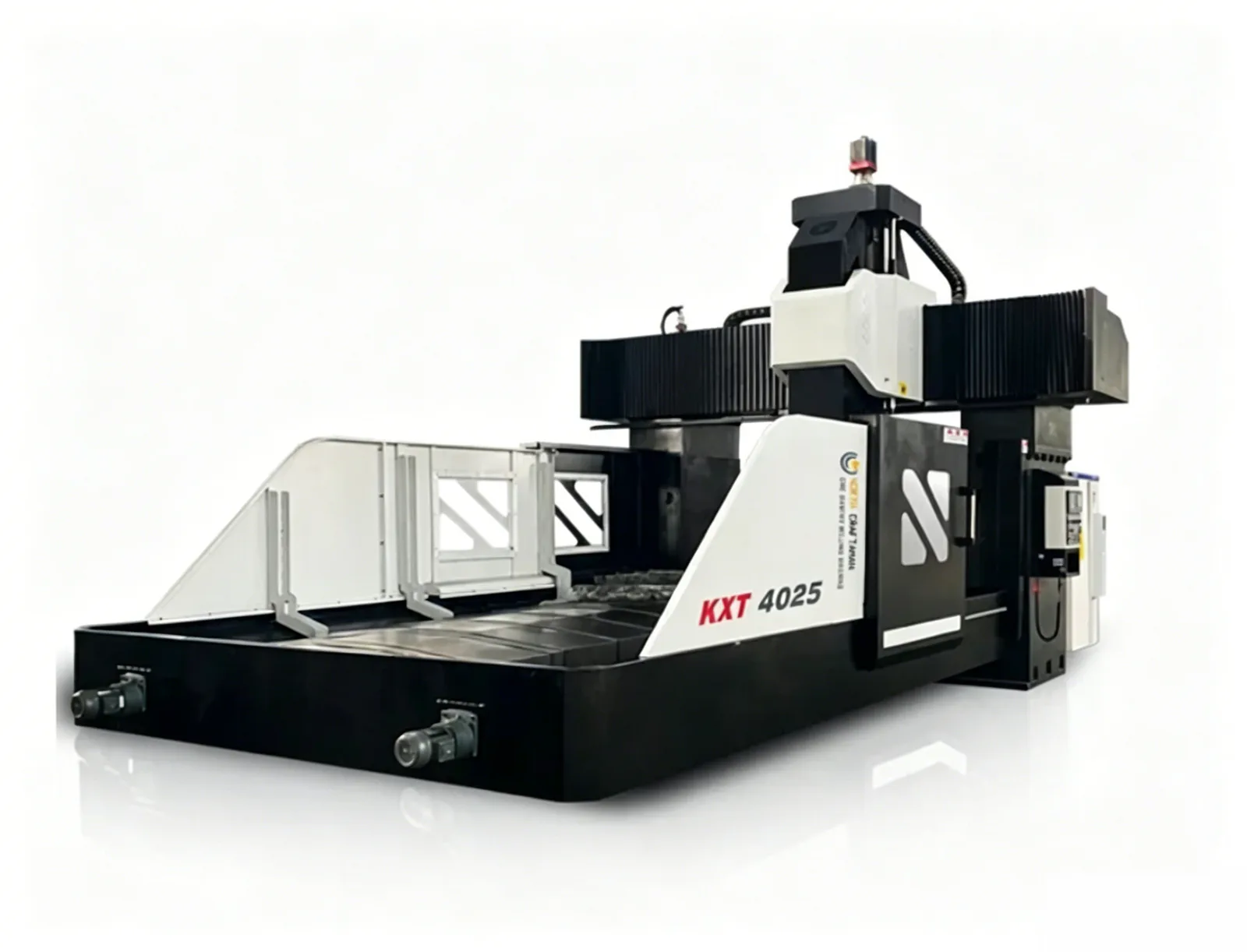

KXT4025 High-Precision Gantry Milling Machine
高精度加工龙门铣床KXT4025
Обзор
High-precision gantry milling machine for large plane and structural component machining.
Применение
Used for milling large plates, frames, molds and heavy machine parts requiring stable gantry cutting.
Технические параметры
Технические параметры
Все оборудование может быть адаптировано; запросы и обсуждения приветствуются.
Xaxis / Model / mm / Unit / KXT1515 / 1500 / KXT2016 / 2100 / KXT3015 / 3200
4200
Z axis / Yaxis / mm / mm / 1500 / 600 / 1800 / 800 / 1600 / 800
1100
Gantry span / Distance from spindle nose to table / mm / mm / 150-750 / 1500 / 1600 / 150-950 / 1600
2500
Table Load / Table Size / mm / Kg / 1200*1500 / 3000 / 2000*1250 / 5000 / 1200*3000 / 5000
15000
T- Slot （Width x Number x Pitch） / mm / 22*5*160 / 22*5*250 / 22.5*7*250
22*9*220
Spindle Taper
Spindle Speed rpm - BT-50/ ISO-50/ CAT-50 3,000（6,000-0pt.）
Spindle motor torque / Spindle motor power / N.m / Kw / 11/15 / 72/98 / 15/18.5 / 98 / 98/117/140 / 15/18.5/22
18.5/22
Rapid Traverse（XNYZ） / Servo motor power（X/Y/Z） / m/min / Kw / 5.1/3.6/4.7 / 5.2/3.6/4.7 / 10/10/7 / 5.5/4.7/5.1
7.5/5.5/5.5
Servo motor torque（X/Y/Z） / N.m / 27/18/23 / 28/18/23 / 32/23/27
36/27/27
Servo motor speed（x/Y/Z） / Ball screw diameter（X/Y/Z） / rpm / mm / 50/50/50 / 63/50/50
80/63/50
Cutting feedrate / mm/mi
6000
Minimum step equival ent / mm
0.001
Standard Accessories
Optional
1 / KND/SYNTEC CNC system
FANUC/SIEMENS CNC system
2 / 3 / Direct-connected spindle speed is 3000rpm / Both sides of screw chip removal device
Belt-type spindle speed is 6000rpm
4 / Spindle with two-stage speed change box
Disc-type tool magazine
5 / Electric tank with air condition
Chain-type tool magazine
6 / 7 / Air filtration purification device / Spindle oil cooler
CNC rotary table
8 / Cooling device
Grating scale
9 / Hydraulic system
Water gun
10 / Air gun
Accessory head grabbed automatically
11
Machine protection shield Attachment head loss prevention system
12 / Linghting system
Fully-auto. 90 degree milling head
13 / Three color light alarm
Semi-auto.90 degree milling head
15 / 14 / Communication interface / Cutting blow
Extended milling head
16 / Handheld electronic hand wheel
Side milling head
17 / Tools and tool box
Flat right-angle milling head
19 / 18 / Horizontal adjustment bolts and shim / Technical documents
Column heightening
