Overview
CNC gear shaping machine for efficient production of precision transmission components.
This model is part of Changyi's Gear Processing Equipment lineup for buyers comparing Chinese CNC machine tools, technical parameters and export-ready quotation options.
Applications
Used for processing internal gears, external gears, compound gears and splined workpieces.

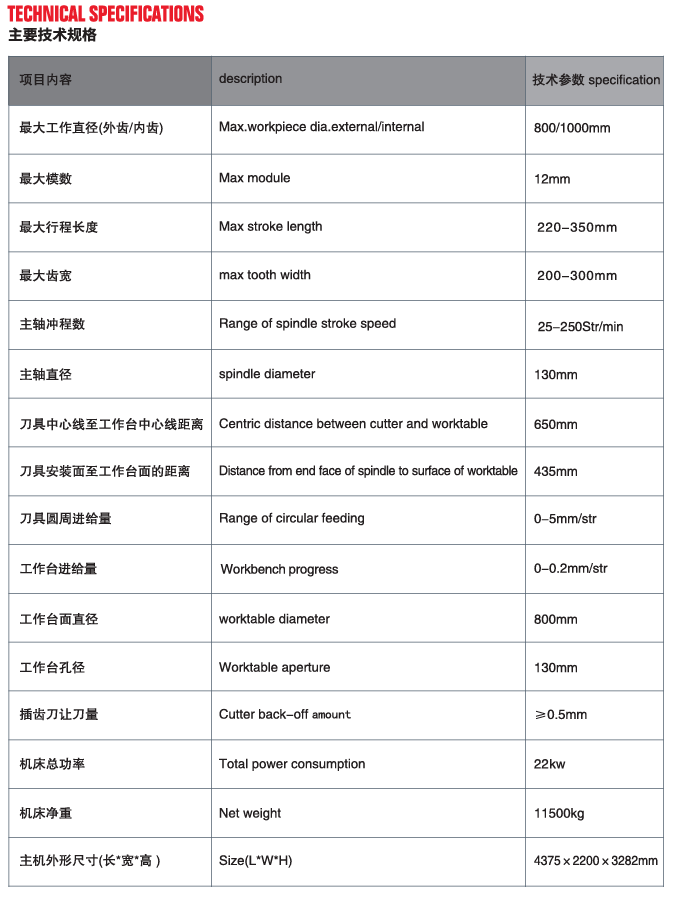

Technical Parameters
Technical Parameters
All equipment can be customized; inquiries and discussions are welcome.
项目内容 / description
技术参数 specification
最大工作直径（外齿/内齿） / Max.workpiece dia.external/internal
800/1000mm
最大模数 / Max module
12mm
最大行程长度 / Max stroke length
220-350mm
最大齿宽 / max tooth width
200-300mm
主轴冲程数 / Range of spindle stroke speed
25-250Str/min
主轴直径 / spindle diameter
130mm
刀具中心线至工作台中心线距离 / Centric distance between cutter and worktable
650mm
刀具安装面至工作台面的距离 / Distance from end face of spindle to surtace of worktable
435mm
刀具圆周进给量 / Range of circular feeding
0-5mm/str
工作台进给量 / Workbench progress
0-0.2mm/str
工作台面直径 / worktable diameter
800mm
工作台孔径 / Worktable aperture
130mm
插齿刀让刀量 / Cutter back-off amount
≥0.5mm
机床总功率 / Total power consumption
22kw
机床净重 / Net weight
11500kg
主机外形尺寸（长*宽“高） / Size（L"W'H）
4375 x2200×3282mm

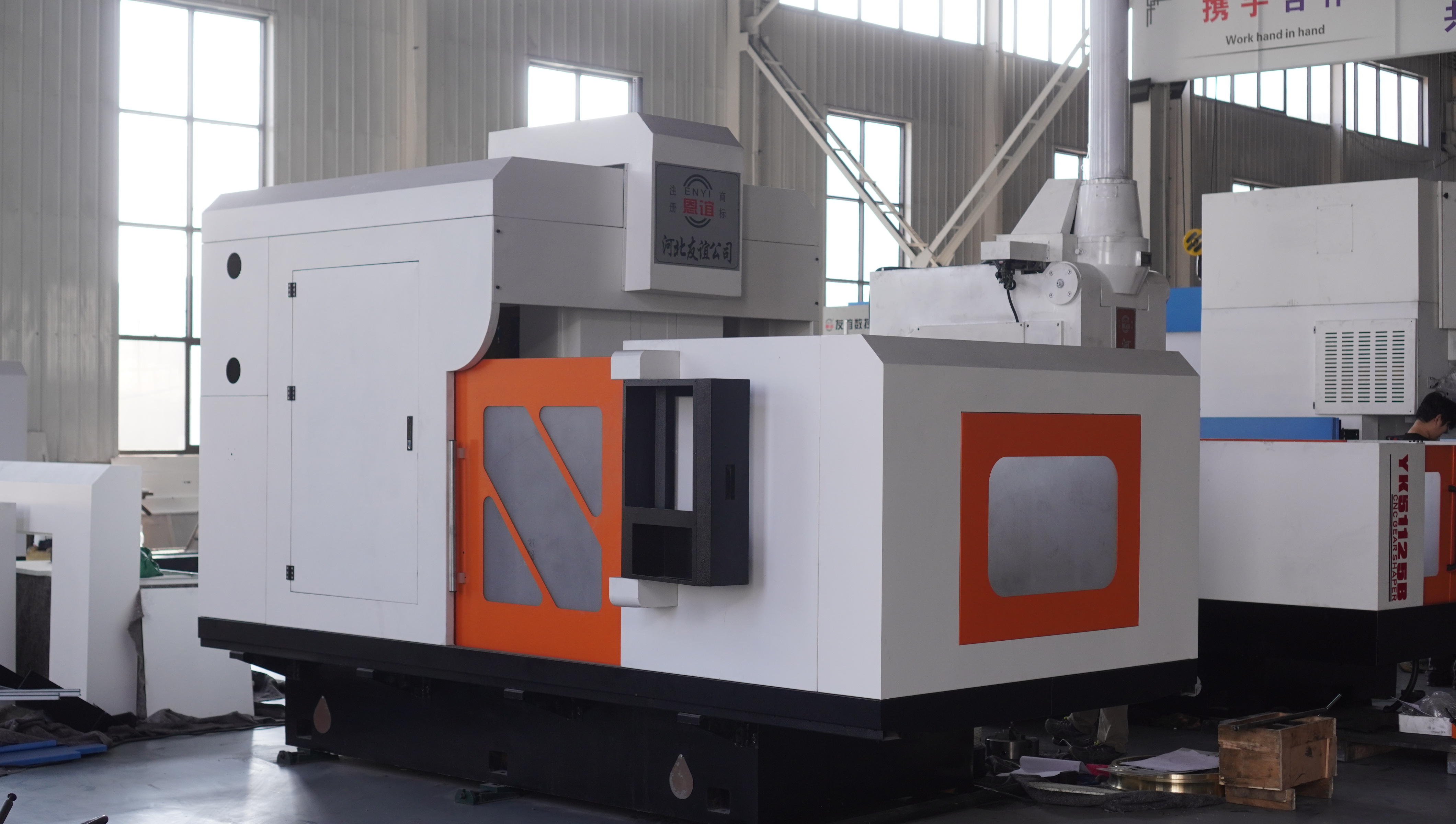

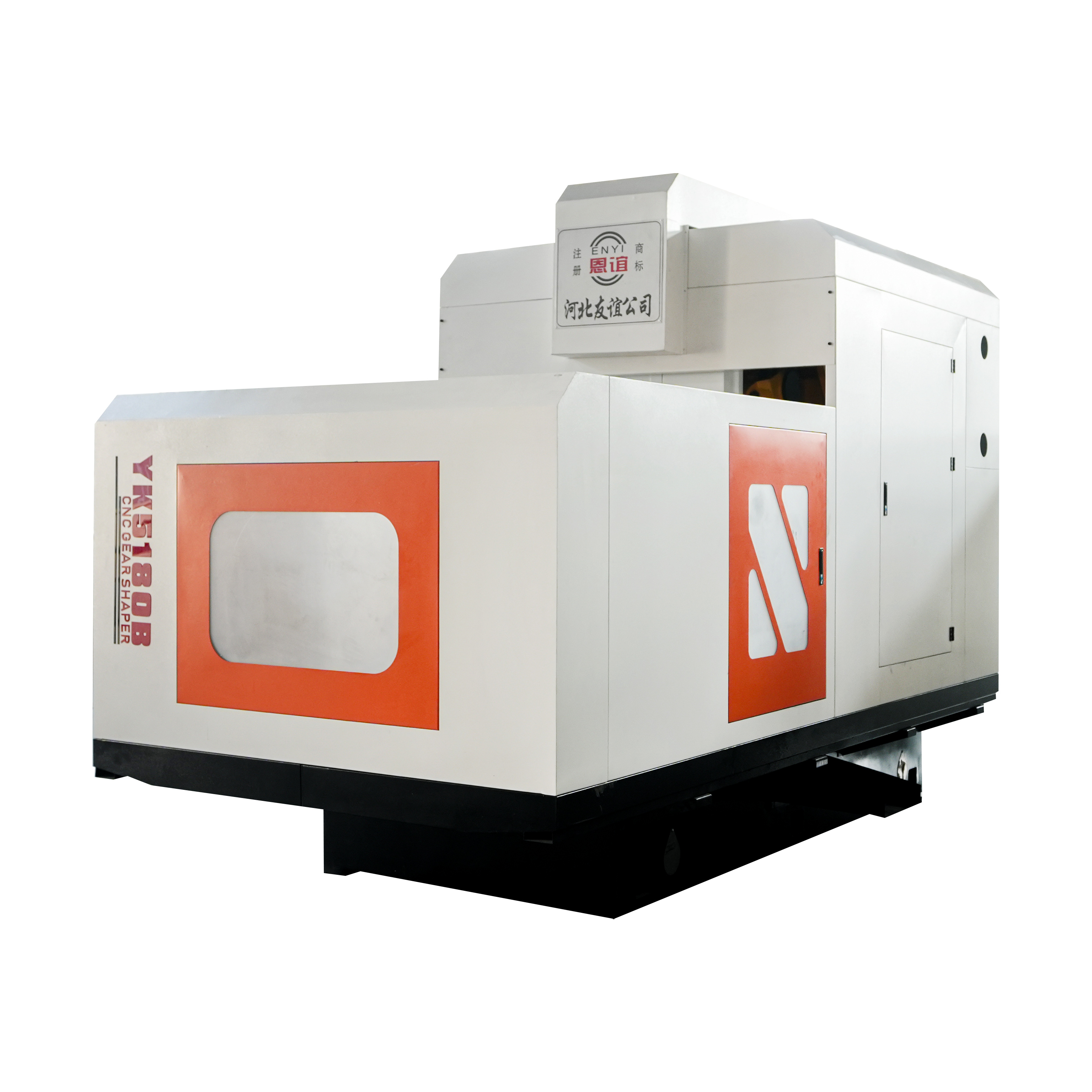

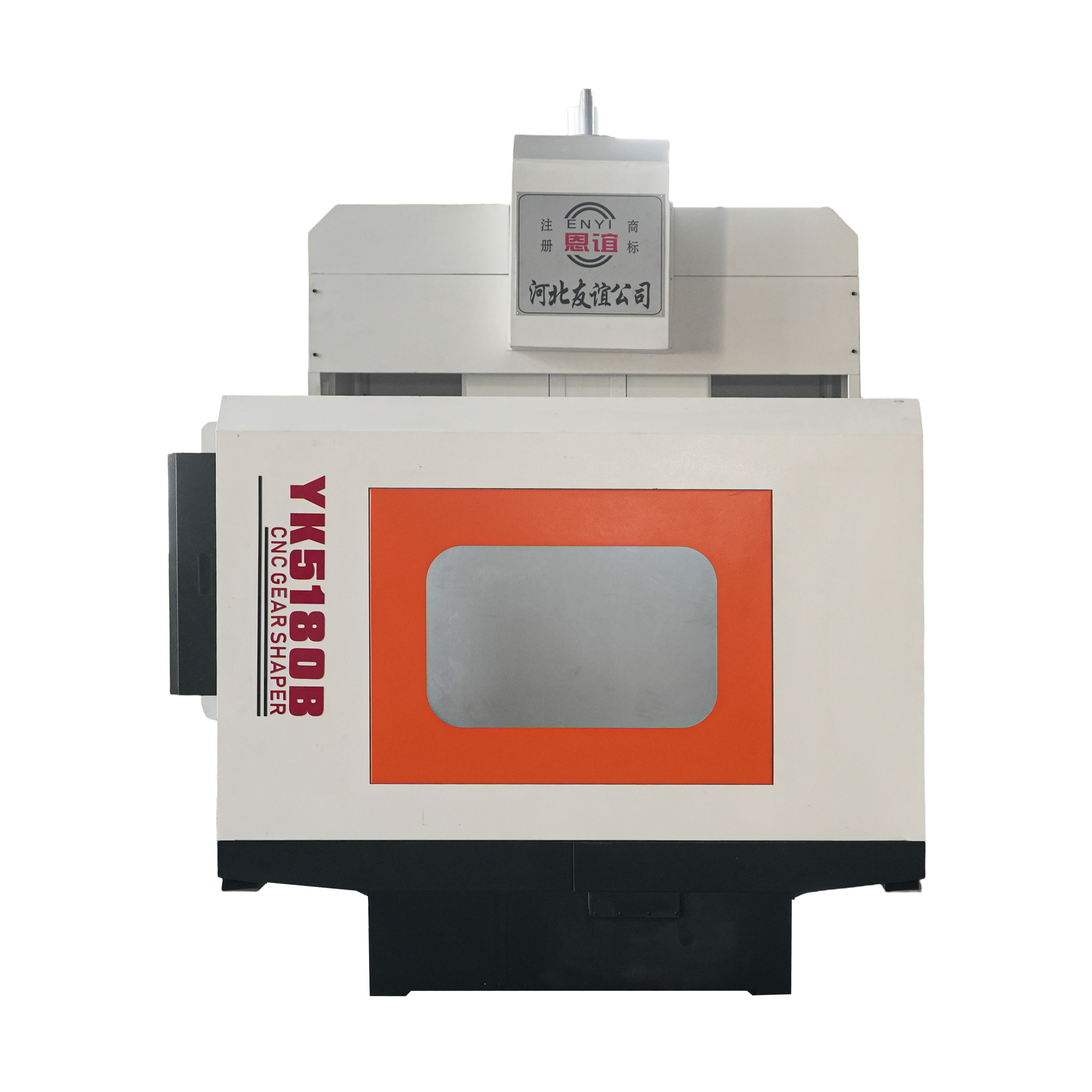

Product Media
