Overview
Heavy-duty CNC gear shaping machine for larger gear blanks and transmission component manufacturing.
This model is part of Changyi's Gear Processing Equipment lineup for buyers comparing Chinese CNC machine tools, technical parameters and export-ready quotation options.
Applications
Used for high-rigidity shaping of large internal gears, external gears and spline components.

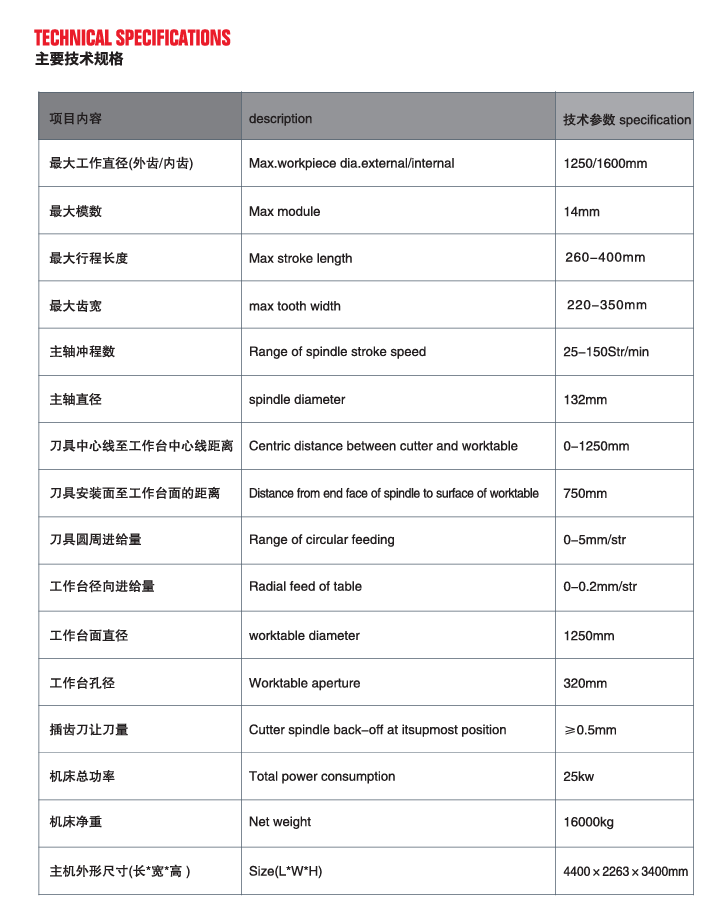

Technical Parameters
Technical Parameters
All equipment can be customized; inquiries and discussions are welcome.
项目内容 / description
技术参数 specification
最大工作直径（外齿/内齿） / Max. workpiece dia.external/internal
1250/1600mm
最大模数 / Max module
14mm
最大行程长度 / Max stroke length
260-400mm
最大齿宽 / max tooth width
220-350mm
主轴冲程数 / Range of spindle stroke speed
25-150Str/min
主轴直径 / spindle diameter
132mm
刀具中心线至工作台中心线距离 / Centric distance between cutter and worktable
0-1250mm
刀具安装面至工作台面的距离 / Distance from end face of spindle to surface of worktable
750mm
刀具圆周进给量 / Range of circular feeding
0-5mm/str
工作台径向进给量 / Radial feed of table
0-0.2mm/str
工作台面直径 / worktable diameter
1250mm
工作台孔径 / Worktable aperture
320mm
齿刀让刀量 / Cutter spindle back-off at itsupmost position
≥0.5mm
机床总功率 / Total power consumption
25kw
机床净重 / Net weight
16000kg
主机外形尺寸（长*宽*高） / Size（L*W*H）
4400 x 2263 × 3400mm

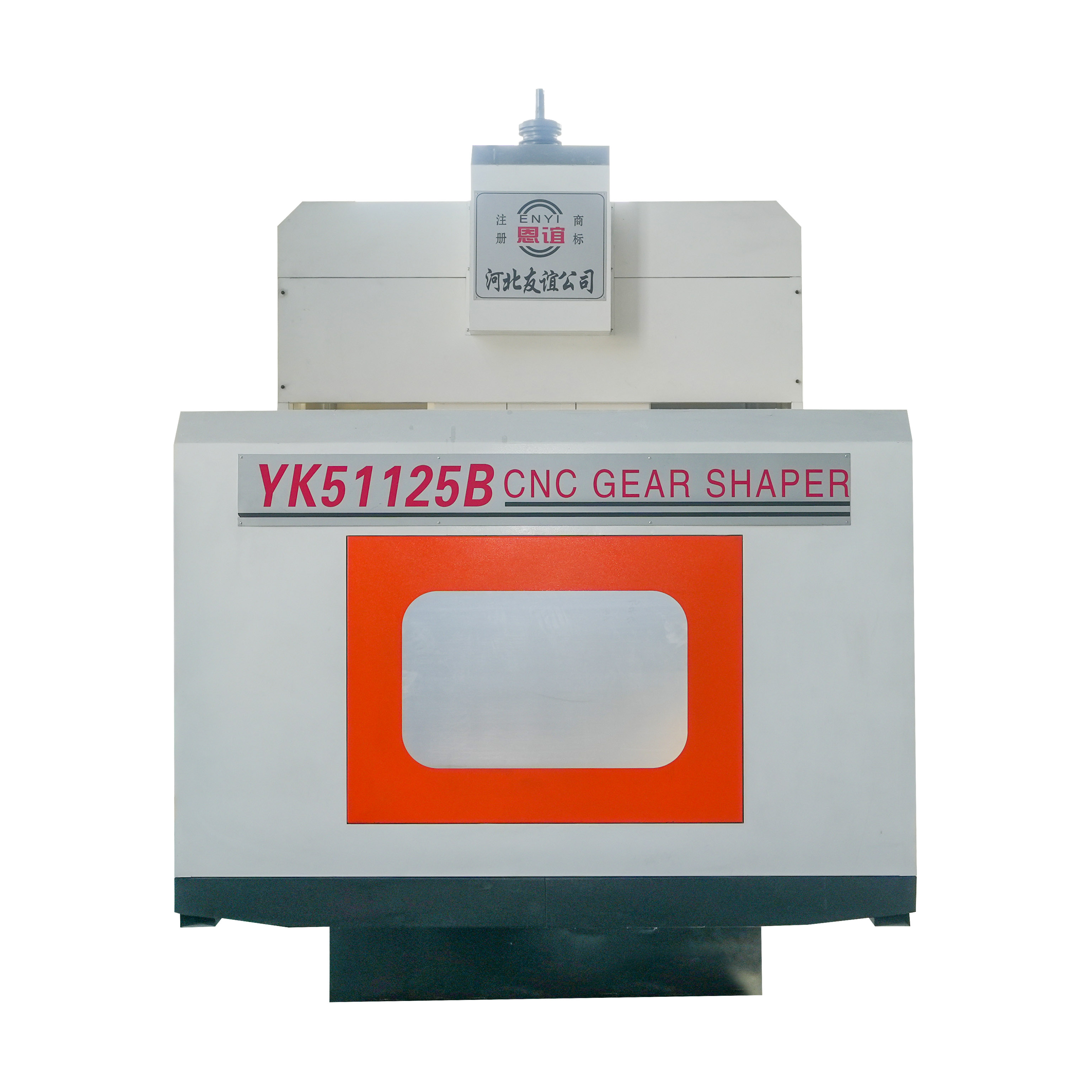

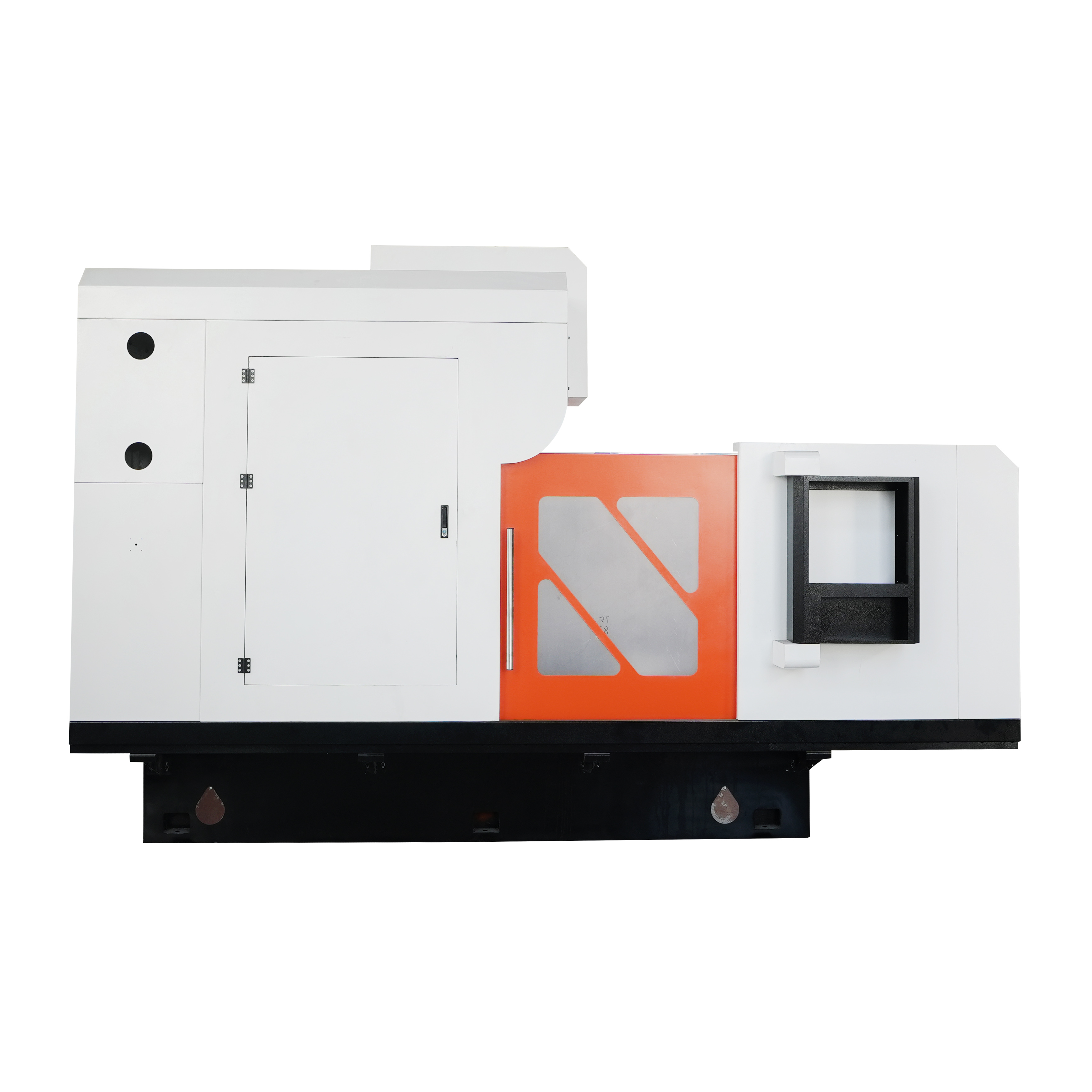

Product Media
91ad38f8f567ade2194c632c39ed2ce5677 KB
Inquiry
Request a quotation for YK51125B
Share your workpiece, accuracy requirements, destination port and expected configuration. Our team will respond with technical guidance.
